ALIGN
(command)
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
|
ALIGN
(command)
|
|||||||||||||||
|
|||||||||||||||
It aligns 2 objects
Modify toolbar
Menu: Modify
Align
Command
line: ALIGN
Select objects: Select the objects to be aligned and press ENTER
Specifytwo pairs of points of origin and of definition to align the selected objects.
|

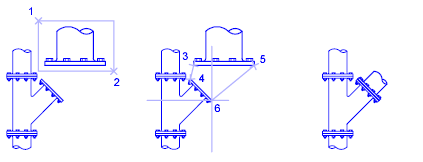

Specify the first point of origin: specify one point (1) Specify the first destination point: specify one point (2) Specify the second point of origin: specify one point (3) Specify the second destination point: specify one point (4) Scale
the objects according to the points of alignment?[Yes/No :
When selecting two pairs of points, it is possible to shift, to rotate and to scale the selected objects to align them with other objects. The first series of points of origin and of destination defines the base point of alignment (1, 2), while the second defines the angle of rotation. After specifying the second series of points, the user is prompted to scale the object. The distance between the first and the second point of destination (2,4) is used as reference length for scaling the object. |
