CIRCLE
(command)
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
|
CIRCLE
(command)
|
|||||||||||||||
|
|||||||||||||||
It creates a circle.
Draw
toolbar
Menu: Draw
Circle
Command
line: CIRCLE
(CIRCLE_2P, CIRCLE_3P, CIRCLE_CD, CIRCLE_TTR, CIRCLE _TTT )
Specify center of circle or [3P (Three points)/2P (Two points)/Ttr (tangent tangent radius)]: Specify a point or enter an option.
CIRCLE_2P
It draws a circle by specifying the endpoints of its diameter.
CIRCLE_3P
It draws a circle by specifying 3 points on the circumference.
CIRCLE_CD
It draws a circle by specifying center and diameter.
CIRCLE_TTR
It draws a circle by specifying two tangent points and the radius.
CIRCLE_TTT
It draws a circle by specifying 3 points tangent to pre-existing geometric objects.
CenterDraw a circle based on a central point and a diameter or radius. Specify radius of circle or [Diameter]: Specify a point, enter a value, enter D or else press ENTER Radius. It defines the radius of the circle. Enter a value, or specify a point (2). The distance between this point and the center point determines the radius of the circle.
Diameter It draws a circle using the center point and a specified distance for the diameter Specify diameter of circle <Current>: Specify a point (2), enter a value, or press ENTER
|
3P (Three points)It draws a circle based on three points on the circumference. Specify first point on circle: Specify a point (1) Specify second point on circle: : Specify a point (2) Specify third point on circle Specify a point (3)
|
2P (Two Points)It draws a circle based on two endpoints of the diameter. Specify first endpoint of circle's diameter: Specify a point (1) Specify second endpoint of circle's diameter: Specify a point (2)
|
TTR (Tangent, Tangent, Radius)It draws a circle with a specified radius tangent to two objects. Specify point on object for first tangent of circle: Select an object Specify point on object for second tangent of circle: Select an object Specify radius of circle <current>:
Sometimes more than one circle matches the specified criteria. In this case, the application will draw the circle of the specified radius the tangent points of which are closest to the selected points.

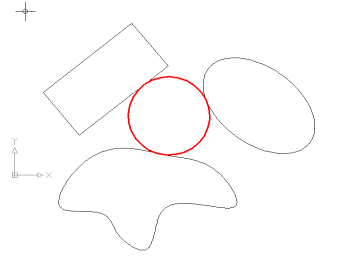

TTT (Tangent, Tangent, Tangent)It draws a circle tangent to three objects. Specify point on object for first tangent of circle: Select an object Specify point on object for second tangent of circle: Select an object Specify point on object for third tangent of circle: Select an object
|
