OFFSET
(command)
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
|
OFFSET
(command)
|
|||||||||||||||
|
|||||||||||||||
It creates concentric circles, parallel lines and parallel curves
Modify
toolbar:
Menu
: Modify
Offset
Command
line: OFFSET
Select object to offset: Use a selection method
Specify offset distance or [Through/break at Intersection] <current>:Specify a distance, enter an option or press ENTER
Specify offset distance or [Through/break at Intersection] <1.0000>
Offset distanceCreates an object at a specified distance from an existing object. Enter the value of the offset distance. Select a side of the just displayed curve: Specify a point on the side of the object to be offset |
ThroughIt creates an object passing through a specified point. Specify the passage point: specify a point through which the offset object has to pass |
Break at IntersectionIt stops the offset operation as the objects intersect. Specify

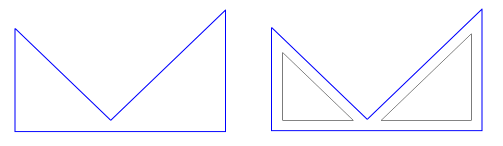

if to interrupt the intersecting lines [Yes/No] Example about specifying if to interrupt the intersecting lines

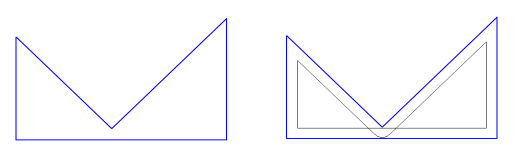

Example about specifying if NOT to interrupt the intersecting lines
|
