Settings: GCode panel

Settings: GCode panel

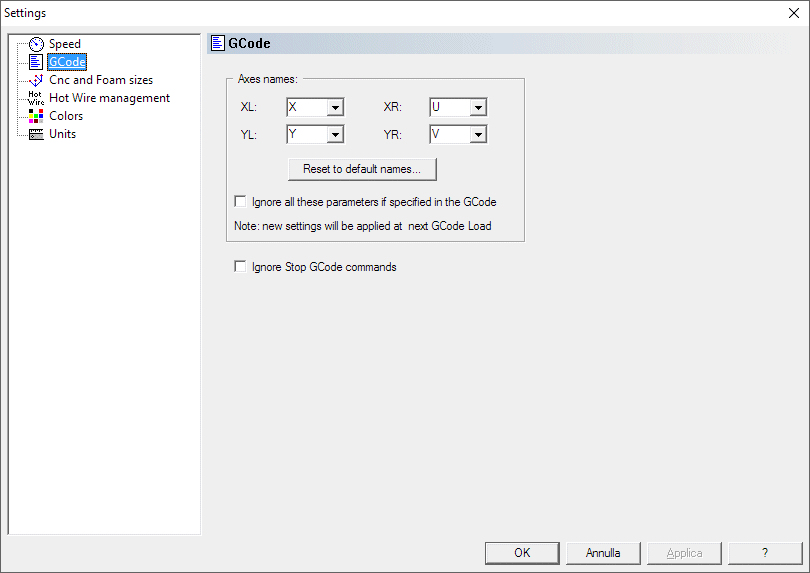

You can set here the axes names used in the GCode.

The axes are referred as:

XL = horizontal (X) Left axis
YL = vertical (Y) Left axis
XR = horizontal (X) Right axis
YR = vertical (Y) Right axis

Note: devSim Cnc Foam can read the axes names also from a special GCode parameter, named AxisNames. This is the default and suggested setting, as devFoam, devFoam Pro, devFus Foam and devWing Foam automatically set these parameter to valid values.
The sintax of the AxisNames parameter is:

;param, AxisNames=XYUV

where the axes names are reported in the order XL YL XR YR, using the sintax displayed in the above example.

You can force devSim Cnc Foam to ignore the GCode parameter AxisNames, by selecting the Ignore all these parameters if specified in the GCode. You must also reload the Gcode as advised, to apply these settings to the current Job.

Ignore Stop GCode commands: you can select to ignore the Stop command eventually included in the GCode.
