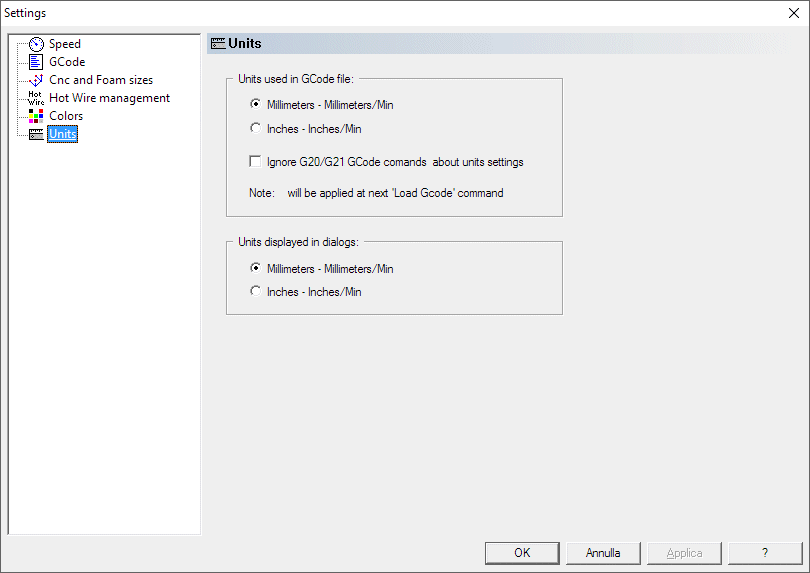

You can set here the Units used in the GCode and displayed in the Main dialog .
Units used in the GCode file frame:
You can select one of the standard unit systems used in Cnc
application.
Usually the right unit is specified in the GCode by the G20 and G21 comands.
You can force devSim Cnc Foam to ignore the G20 and G21 comands, by selecting the Ignore G20/G21 comands about units setting option. You must also reload the Gcode as advised, to apply these settings to the current Job.
Units displayed in dialogs frame:
You can select one of the standard unit systems to show the
values in devSim Cnc Foam dialogs.
