Drawing a Smart Shape
Overview     Operations     Commands

How to insert a Smart Shape

1. Choose Smart Shape from the Draw menu.
2. Select the symmetrical axis between H=Horizontal, V=Vertical, B=Both, N= None.
3. Select the first corner of the square or F to define the filleting radius X and Y or V to specify the first vertex and not the center.
4. Select the opposite corner or use D=Dimension to enter the dimensions of the starting rectangle

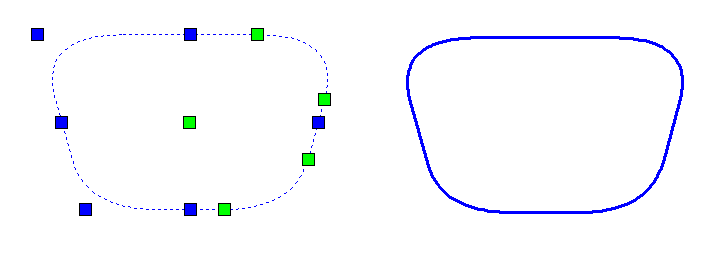

5. The Smart Shape is now drawn as a filleted rectangle; it is possible to select it and stretch it with Grips to shape it as required.

 Draw toolbar

  Menu : Design Smart shape

 Command line SHAPE1
