Creating and using print settings with name

Printing drawings

Creating and using print settings

Overview

Operations

Commands

How to manage print settings

Click on the menu Print Printing layouts manager.

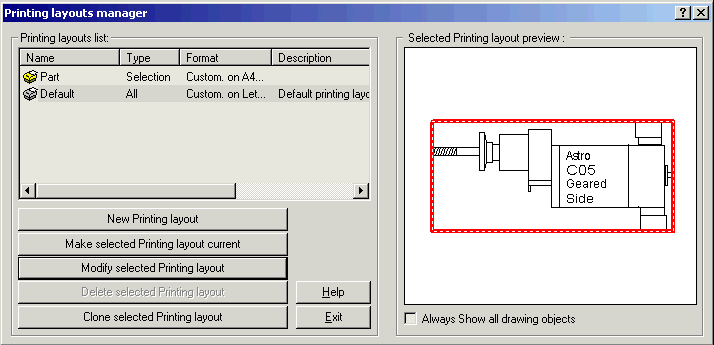

The appropriate dialog box (Printing layouts manager) will be displayed.

In the graphic window on the right the selected print preview is displayed, with the printing area framed in red.
In this window it is possible:

to define a new print setting;

to select the active print setting (displayed with a yellow printer in the list);

to modify the print settings;

to delete a print;

to duplicate a print.

Command line: LAYOUTS
