How to create new Symbols for Point objects

This is a very simple operation.
It consists of opening a new drawing, draw the symbol and save it using the   menu File Save as a new Symbol.

• Select the objects to be saved in the symbol and press ENTER
• Specify the center of the symbol, to be used later as an application point.

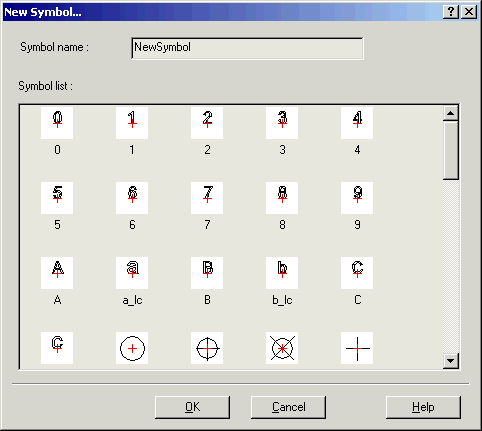

• Specify the name of the symbol in the Inserting new symbol tab



  or else select the symbol to be overwritten.
