Using
the colors
|
||||||||||||||
|
||||||||||||||
Colors allow the visual grouping of objects. It is possible to assign colors to objects by layer or as specific entities (independent from the layer).
It is possible to change the color of an object reassigning it to an other layer, or modifying the color of the layer on which the object is, or directly specifying the color of the object.

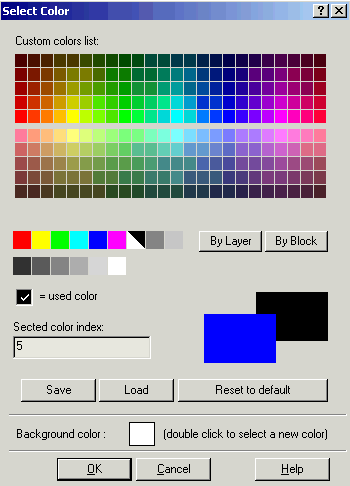

It is possible to select a color in the dialog window here below.
Double-clicking on one of the colors will open a further window, allowing for a more refined choice of color.
Otherwise, it is possible to set the current color By Layer or By Block, using the actual settings of the layer or block to which the objects belongs.
It is also possible to save o to re-load a color, in the same manner as resetting the default values.
It is possible to change the background color double-clicking on the small white square to the right of Background
