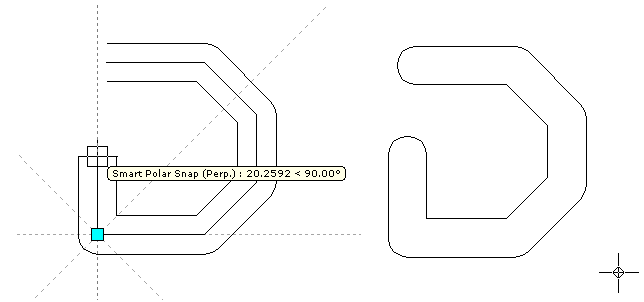

Drawing
double polylines
|
|
|
Multi lines
are composed of 2 parallel polylines, called elements
Properties
of double polylines
They
include:
- elements
composed by 2 parallel segments of polyline;
- the
offset distance of each element from the center of the multi line;
- the
possibility of interrupting intersecting lines;
- the
possibility of inserting ending elements;
- the
shape of ending elements.
