Objects creation and modification	Approximating polylines
Approximating polylines
Overview     Operations    Commands

How to approximate a polyline converting arcs into small segments

1. Click on the menu Modify  Polylines operations...  Polyline: approximate arcs to segments
2. Select the objects to be converted, then press ENTER.
3. Specify the Tolerance as the max distance between the old arc and the new segments
4. Press ENTER.

A message will display the result of the operation.

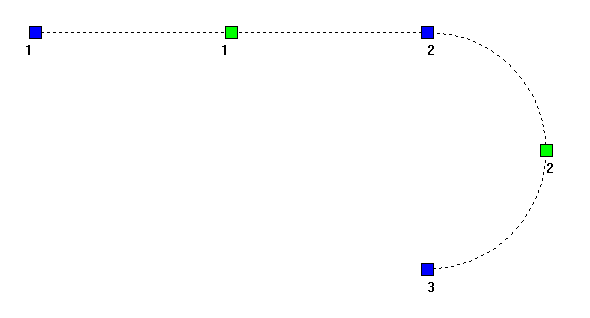

Here is an example of a polyline formed by 1 segment and 1 arc

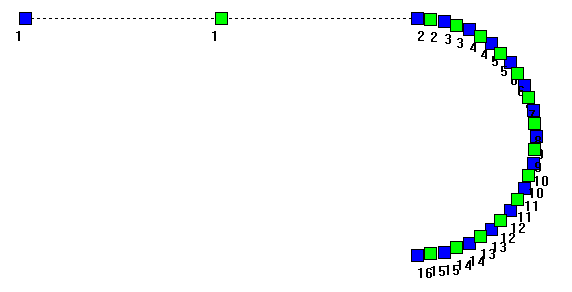

and the result of this command which produced a polyline  of 15 segments.

 Modify toolbar

 Command line: TO_SEGMENTS
