DLINE (command)
Overview   Operations   Commands

It creates a double polyline

 Draw toolbar

  Menu : Draw Double Polyline

 Command line: DLINE

Specify the distance between the central and the left line <5.0000>: specify a distance.

Specify the distance between the central and the right line <5.0000>: specify a distance.

Specify if to interrupt intersecting lines [Yes/No] :

If  Y, the intersecting lines of the double polyline will be interrupted.

Specify if to draw the end elements [Both/End/None/Start] :

B: draws both end elements:

E: only draws the final end element

N: does not draw end elements

S: only draws the starting end element.

To enter points options the procedure is identical to the one of Polyline objects: see PLINE

Example of closed Double Polyline with interrupted lines:

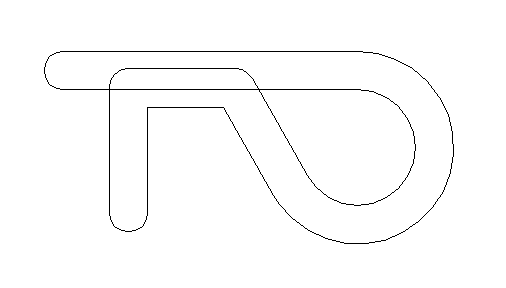

Example of Double Polyline without interrupted lines and with arc end elements.
