How to draw a straight line tangent to a curve and perpendicular to an other one

1. Click on the menu Draw  Line....  Tangent, perpendicular
2. Specify the first vertex of the line on the the object, near the tangent.


   A Deferred Tangent Snap will help you to select the point.

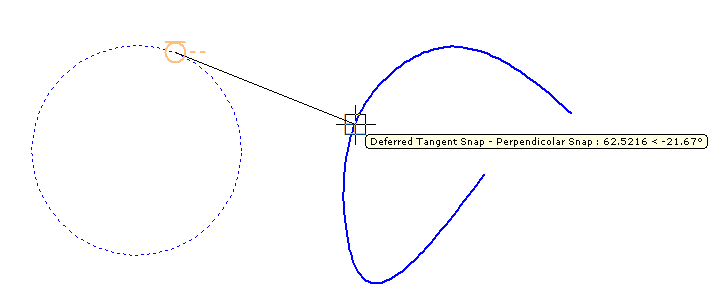

3. Moving the mouse cursor you can now see the first vertex to move in order to keep the line tangent to the object.
4. Specify the second vertex of the line on the the object, using the Perpendicular Snap.

The action is completed using a Deferred Tangent Snap for the first requested point, see also Using the Object Snaps

 Command line: LINE_TP
