GMFC .cut file creation
|
||||
|
||||
|
GMFC .cut file creation
|
||||
GMFC .cut file creation
You can get this dialog box pressing the Export Path to GMFC script .CUT file button located in Simple cutting, Advanced cutting, Cut Laminated Parts, Cut Along Vector and Cutting Tapered Parts wizard dialogs

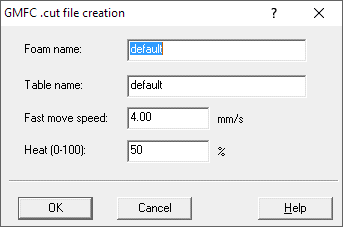

The following dialog will appear:
Using the 'Cut - Script execution' of a GMFC application you can then run the
.cut file you are going to create here, to drive your CNC 4 Axis foam cutting
machine.
Foam name
The name of the Foam in the GMFC 'Foam management' menu. Please refer to GMFC help file for more info about.
Table name
The name of the Table in the GMFC 'Tables management' menu. Please refer to GMFC help file for more info about.
Fast move speed
The speed to apply for the fast moving paths, in mm/s. This must be lower than the Max motor speed possible for the specified Table
Heat
The heat percentage used by GMFC for the specified Foam type. This controls the hot wire temperature. Please refer to GMFC help file for more info about.
You can select if you want to cut a right or left wing panel selecting if you want the root at the left or right side
Pressing OK you will be prompted for the name of the .cut file you are going to
create. Then the extimated cutting time will be displayed.
Using the 'Cut - Script execution' of a GMFC application you can now run
the .cut file you have created here, to drive your CNC 4 Axis foam
cutting machine. Please refer to GMFC help file for more info about.
