Customize DXF
|
|
Customize DXF
You can get this dialog box pressing the
' Customize DXF' button located in
Simple cutting, Advanced
cutting, Cut Laminated
Parts, Cut Along Vector and Cutting
Tapered Parts wizard dialogs

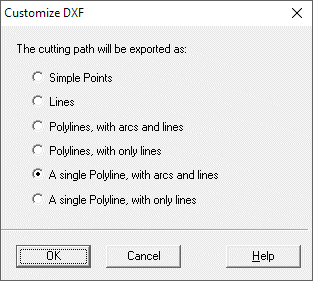

The following dialog will appear:
You can select here one of the following options:
-
Simple points: the
Cutting path will be described by single points
-
Lines: the
Cutting path will be described by simple lines. Cutting lines in
Red and connecting lines in Green
-
Polylines, with arcs and lines: the
Cutting path will be described by multiple polylines. The
polylines can include both lines and arcs. Cutting lines in Red and connecting
lines in Green
-
Polylines, with only lines: the
Cutting path will be described by multiple polylines. The
polylines can include only lines. Cutting lines in Red and connecting
lines in Green
-
A single Polyline, with arcs and lines:
the
Cutting path will be described by a single Polyline. The
polyline can include both lines and arcs.
-
A single Polyline, with only lines:
the
Cutting path will be described by a single Polyline. The
polyline can include only lines.
