Browse Tapered Parts

Browse Tapered Parts      Pro  version only

Using this dialog you can create/manage Tapered parts and cut them.

See 'not Tapered parts and Tapered parts' to better understand what Tapered parts are.

You can have access to this dialog by the 'Startup dialog' or from the menu 'Cut - Cut/Browse Tapered Parts'

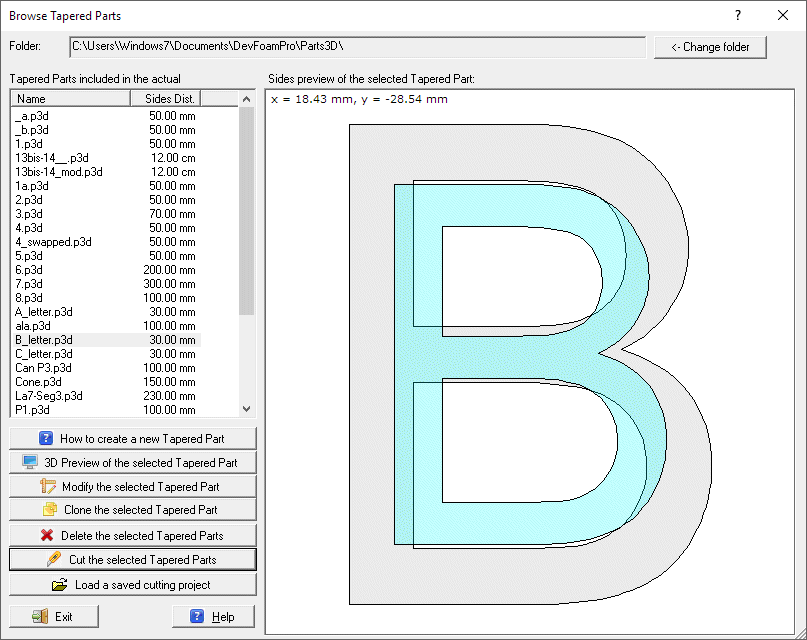

The following dialog will appear:

Using the '<- Change Folder' button you can specify the Folder you want to Browse.

In the Left side of the dialog you can see the list of the Tapered Parts included in that dialog. If you select one tapered you will see in the graphic view the 2 sides of the selected tapered Part.

You can then use one of the following buttons:

• How to create a new tapered Part: you will see this How to create a new tapered Part page of the Help explaining the way you must run to create a new tapered part
• 3D Preview of the selected tapered Part: it will start the application dev3DView to show you the real 3D shape of the selected tapered Part
• Modify the selected tapered Part: the tapered Part management dialog will start, where you can modify the selected tapered Part
• Clone the selected tapered Part: a new tapered part will be created, as a clone of the selected one
• Delete the selected Tapered Parts: the selected Tapered Parts (multiple selection is allowed) will be removed from the Folder
• Cut the selected Tapered Parts: the Cutting Tapered Parts wizard will start, where you can cut the selected tapered Parts (multiple selection is allowed)
• Load a saved cutting project: you will be prompted to open a saved Cutting Project, then the Cutting Tapered Parts wizard will start
